OpenAPI Plugin

The OpenAPI Specification Plugin (OAS) builds on top of the JsonApi4j plugin system to provide automatic, always-in-sync API documentation. It observes registered resources, relationships, and operations and translates them into an OpenAPI-compliant model. Because the specification is derived directly from the same metadata used at runtime, it accurately reflects the actual behavior of your JSON:API endpoints without requiring manual maintenance.

To enable the plugin, add the following dependency:

<dependency>
  <groupId>pro.api4</groupId>
  <artifactId>jsonapi4j-oas-plugin</artifactId>
  <version>${jsonapi4j.version}</version>
</dependency>

If you’re using Spring Boot or Quarkus, the plugin is auto-configured with default values.

Accessing the Specification

JsonApi4j generates an io.swagger.v3.oas.models.OpenAPI model and exposes it through a dedicated endpoint.

By default, the specification is available at /jsonapi/oas. It supports an optional format query parameter (json or yaml) — defaulting to json if not provided.

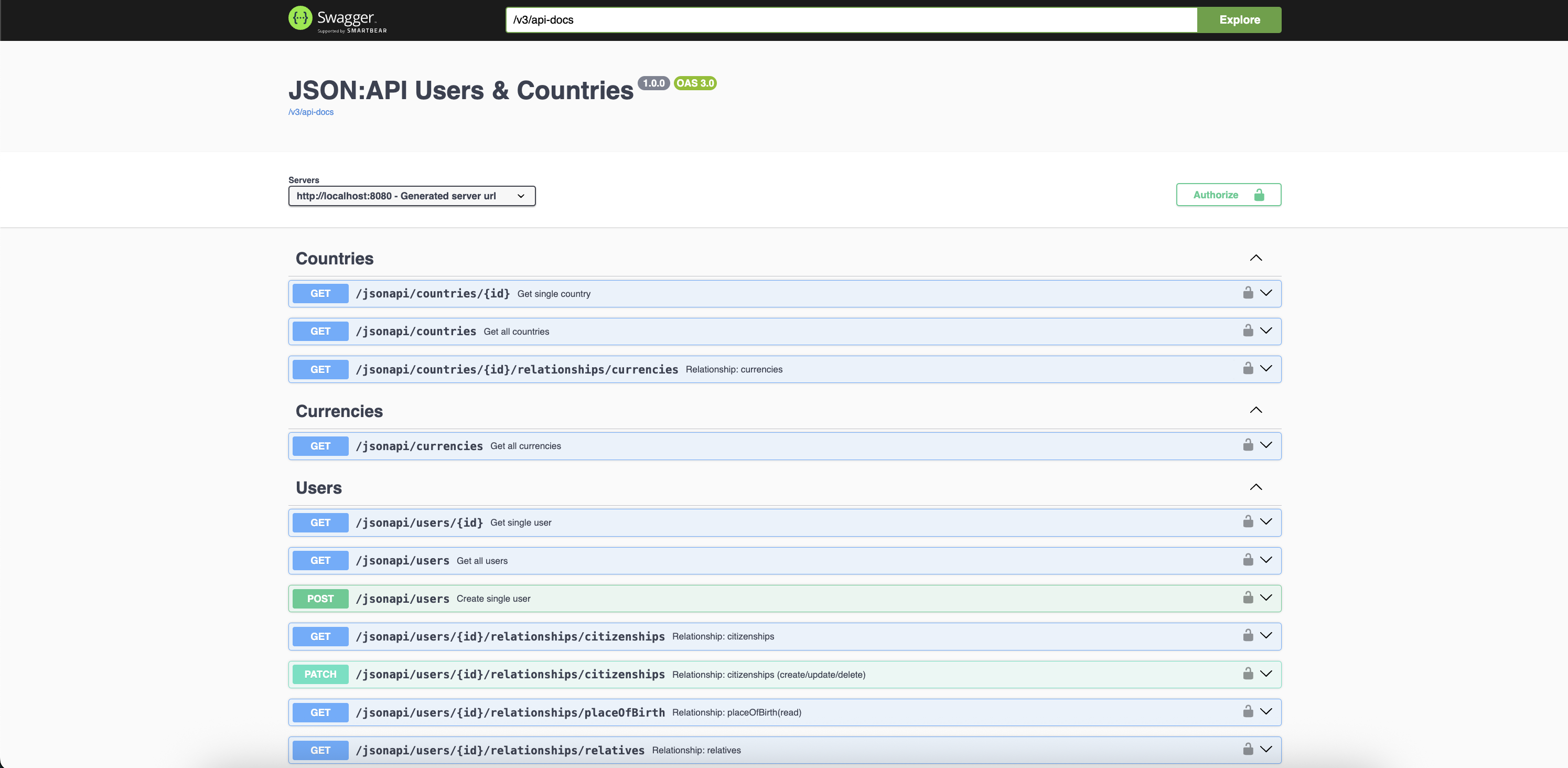

The document the sample app produces is published as a live OpenAPI example — regenerated on every build and asserted by the test suite, so it is what the plugin emits today rather than what it emitted once.

Out of the box, JsonApi4j generates all schemas and operations automatically. JSON:API parameters, request/response schemas, and error models are all included.

Enriching the Specification

To add metadata beyond what the framework generates automatically (e.g., info, securitySchemes), you have two options:

Via configuration properties — set OpenAPI metadata in application.yaml / application.properties. See the Spring Boot sample config or Quarkus sample config for reference.

Via annotations — place these on your domain and operation classes for fine-grained control:

Annotation	Placement	Purpose
@OasResourceInfo	On Resource class	Declares the attributes class, the singular resource name, and how the resource’s identifier is described and exemplified
@OasRelationshipInfo	On ToOneRelationship or ToManyRelationship class	Declares the resource types the relationship links to, and the type of the meta its resource linkage carries
@OasOperationInfo	On operation class or individual operation methods	Overrides the generated operation summary, description and request body type, and declares sortable fields, filters, pagination styles, application-specific parameters and OAuth2 security requirements

Example:

@JsonApiResource(resourceType = "users")
@OasResourceInfo(
        resourceNameSingle = "user",
        attributes = UserAttributes.class,
        resourceIdDescription = "User unique identifier",
        resourceIdExample = "3"
)
public class UserResource implements Resource<UserDbEntity> {
    // ...
}

resourceIdDescription and resourceIdExample are declared once and reach every place that resource’s identifier appears — the {id} path parameter of each operation acting on one instance, and the id member of the resource schema. They belong to the resource rather than to an operation because every operation asks for the same identifier; declaring them per operation is what lets one endpoint carry an example and the next one not. Request bodies keep their own id wording, which says whether the id must match the path or may be omitted, since that is about the operation.

@JsonApiResourceOperation(resource = UserResource.class)
public class UserOperations implements ResourceOperations<UserDbEntity> {

    @OasOperationInfo(summary = "List all users", description = "Returns a paginated list of users")
    @Override
    public PaginationAwareResponse<UserDbEntity> readPage(JsonApiRequest request) {
        // ...
    }
}

Using springdoc Instead of the Built-in Endpoint

If your Spring Boot app already serves an OpenAPI document through springdoc, feed it the JsonApi4j customizers rather than running both endpoints. springdoc’s OpenApiCustomizer declares the same customise(OpenAPI) method the framework’s customizers do, so one bean is the whole integration:

@Bean
public OpenApiCustomizer jsonApi4jOpenApiCustomizer(JsonApi4j jsonApi4j) {
    return openApi -> OasDocument.customizers(jsonApi4j).forEach(customizer -> customizer.customise(openApi));
}

OasDocument.customizers(...) returns them in the order they must be applied, so the document springdoc publishes matches the one the built-in endpoint would. Everything each customizer needs — the registries, the root configuration, the OAS configuration — comes off the JsonApi4j bean.

To build a document without springdoc, OasDocument.generate(jsonApi4j) returns a finished OpenAPI.

See the Spring Boot sample app for the complete configuration.

Request Bodies

Every write operation gets a request body derived from what JSON:API prescribes for it — nothing to declare:

Operation	Request body schema
POST /{type}	<Type>CreateRequestDoc — id optional, so the client may generate it
PATCH /{type}/{id}	<Type>UpdateRequestDoc — id required
PATCH /{type}/{id}/relationships/{name} (to-one)	ToOneRelationshipRequestDoc — linkage, nullable to clear
POST/PATCH/DELETE /{type}/{id}/relationships/{name} (to-many)	ToManyRelationshipsRequestDoc — array of linkage
DELETE /{type}/{id}	none

<Type> is the resource type capitalized, so users yields UsersCreateRequestDoc. The relationship bodies carry no <Type> prefix because they are pure resource linkage — {"data": {"id": …, "type": …}} — which looks the same whatever resource it points at, so one schema serves them all. The exception is a relationship declaring @OasRelationshipInfo(resourceLinkageMetaType = …): its linkage carries a typed meta, which makes the body specific to that relationship, so it gets <Type><Relationship>ToOneRelationshipRequestDoc / <Type><Relationship>ToManyRelationshipsRequestDoc instead. The same typed identifier is reused in responses, so a client sees one shape for the linkage whichever direction it travels.

Every resource schema pins its type to the single value JSON:API allows for it — UsersResource.type is enum: ["users"], not an open string. That is the same rule the framework enforces at runtime by answering a mismatched request body with a 409, so the document and the server now say the same thing. It also makes included resolvable: the union of resource schemas a document may carry declares a discriminator on type, mapping each resource type to the schema describing it, so a generated client deserializes each member into its concrete class instead of handing the caller a union to switch on.

These are separate from the response documents on purpose: a request carries no links or included, and id is optional on create but mandatory on update. To document a body the framework cannot derive, set @OasOperationInfo(payloadType = YourPayload.class) — the declared type replaces the derived one and its schema is registered automatically.

Required Attributes Are a Create-Only Promise

@Schema(requiredMode = REQUIRED) on an attribute says what a create must carry, and that is the one place it is published — <Type>CreateAttributes. The other two forms require nothing:

Schema	Referenced by	required
<Type>CreateAttributes	POST /{type}	as the resource declared it
<Type>UpdateAttributes	PATCH /{type}/{id}	nothing — PATCH is a partial update, so a client sends only what it is changing
<Type>Attributes	every response	nothing — see below

That is not a weakening — it is the only honest reading. A response cannot promise an attribute is present:

• an attribute with no value is not serialized at all — true of every application, with no plugins involved;
• sparse fieldsets let a client ask for a subset (?fields[users]=fullName);
• access control withholds what the caller may not see.

Each of those produces a response that a required list copied from the attributes class would reject. A generated client would model the attribute as non-nullable and fail to read a response the server is entitled to send, and a strict response validator would reject it — which is exactly what used to happen. The same reasoning is what separates create from update: requiring an attribute on PATCH would reject a partial update the framework accepts.

Each reason is described by whoever owns it, so a document never mentions a plugin the application does not run. The framework’s own pass states the first line only; the sparse fieldsets customizer adds “A client can narrow what is returned with fields[users]“, and access control adds what it withholds. Turn both plugins off and the attributes schema says just the one sentence.

Each form is published only for the operation that uses it: a read-only resource gets none of the write forms, and a resource with only an update gets only <Type>UpdateAttributes. On a read-only resource the annotation therefore publishes nothing at all.

One thing required is not: enforced. The framework does not reject a create for a missing attribute on the strength of requiredMode — that is what validateCreate is for. So the annotation is a claim about your own operation, and it is worth keeping the two in step: the sample app declares fullName and email required and its validateCreate checks both. A required the validator does not enforce is a document that promises something the server does not do.

Where the Access Control plugin guards an individual attribute, the response schema also says so on that attribute — “Absent from the response unless the caller qualifies — requires the scopes users.sensitive.read” — using the requirement’s own description() where one was given. Absence alone tells a client nothing; naming the requirement turns it into something they can act on.

Operation Ids

Every operation gets an operationId, derived from what it does and what it acts on:

get-all-users                        create-single-user
get-single-user                      update-single-user
get-user-relatives-relationship      delete-user-relatives-relationship

Client generators name their methods after it, so it is part of your published contract — treat a rename as a breaking change.

Your resourceType stays exactly as you declared it, plural as JSON:API asks: it is what paths, tags, schema names and the type member are built from, and get-all-users uses it as-is. A singular form appears only where the plural would read wrong — in the ids of operations acting on one resource (get-single-user) and in the generated summaries and descriptions (“Retrieves user details by resource id.”). The plugin guesses it from the resource type (countries → country, addresses → address, status → status, left alone when unrecognised). Set @OasResourceInfo(resourceNameSingle = …) on the resource whenever that guess reads wrong. There is no override for the plural — that is the resource type itself.

Query Parameters

The framework parses sort, page[…] and fields[…] for every request, but only the operation can act on them — so the document publishes what the operation declares, never what the request layer merely accepts.

Parameter	Published when
include	the resource has relationships with a read operation
fields[TYPE]	the sparse fieldsets plugin is enabled and the operation returns resources
page[cursor]	the operation is paginated — the default
page[limit], page[offset]	@OasOperationInfo(pagination = {CURSOR, LIMIT_OFFSET})
sort	@OasOperationInfo(sortableFields = {"fullName", "email"})
filter[…]	@OasOperationInfo(filters = {@Filter(name = "region")})

@OasOperationInfo(
        sortableFields = {"fullName", "email"},
        pagination = {PaginationStyle.CURSOR, PaginationStyle.LIMIT_OFFSET},
        filters = {
                @Filter(name = "id", example = "3"),
                @Filter(name = "region", description = "Filter by region", example = "Asia")
        }
)
public PaginationAwareResponse<UserDbEntity> readPage(JsonApiRequest request) { … }

sortableFields becomes the parameter’s allowed values in both directions — fullName, -fullName, email, -email. Pagination defaults to cursor alone, so an operation that does not read page[limit] never advertises it.

A filter is declared by its dimension, not by its parameter name: the framework spells it filter[id], makes it optional and multi-valued as JSON:API defines filters, and bounds it with validation.maxElementsInFilterParam.

Every multi-valued parameter is published as style: form, explode: false, so a generated client sends ?include=citizenships,placeOfBirth — the form JSON:API asks for. Saying nothing would not be neutral: OpenAPI’s default for a query parameter is a repeated key (?include=a&include=b). The request layer accepts either form, so this is about what the document promises rather than what the server takes.

Application-specific Parameters

@OasOperationInfo(parameters = …) documents parameters the framework cannot derive — the application’s own query parameters, which reach an operation through JsonApiRequest#getCustomQueryParams().

@OasOperationInfo(
        parameters = @Parameter(name = "tenant", description = "Tenant the request is scoped to", required = false)
)

Naming a parameter the framework already generates — id, include, sort, page[…], fields[…], filter[…] — contributes a description and example to it and nothing else, so the generated schema keeps the constraints it took from the running configuration. For the id, prefer @OasResourceInfo: it reaches every operation at once.

One fields[TYPE] parameter is published per type the document can carry: the primary resource plus what it can include. That is one level — a client may nest includes (include=citizenships.currencies) and select fields on what comes back, but the document describes the immediate contract and leaves the rest of the graph to be discovered from the related resource’s own operations. The included schema describes the same single level, so the two never disagree.

Limits configured under jsonapi4j.validation are projected into the schemas: page[limit] carries its maximum, sort and include their maxItems, and the id path parameter its maxLength.

Deprecating an Operation

deprecated marks an operation on its way out, and tooling picks it up — Swagger UI strikes it through, generators emit a deprecation on the method they create:

@OasOperationInfo(deprecated = true)
public UserDbEntity readById(JsonApiRequest request) { … }

A whole resource can go at once, which marks every operation acting on it:

@OasResourceInfo(deprecated = true)
public class LegacyUserResource implements Resource<UserDbEntity> { … }

Deprecation only ever widens: a resource takes its operations with it, an operation may retire on its own, and nothing opts back in. Java’s @Deprecated is not read for this — use the attribute.

Responses

Every operation documents the status it answers with, including the writes that return no body:

Operation	Success response
GET (resource, collection, relationship)	200 with the corresponding document
POST /{type}	201 with <Type>SingleResourceDoc
PATCH / DELETE, and every relationship write	204, no body

Collection and to-many responses name their pagination links and meta members rather than leaving them an untyped map, so a client can page from the document alone — see Pagination for what each one means.

The error responses an operation documents are derived from what the framework can actually answer with, so a generated client handles every failure it may see and none that it cannot:

Status	Documented on
400, 405, 406, 429, 500	every operation
401	operations declaring an OAuth2 security requirement — the host’s security layer rejects the request before the framework sees it
403	POST /{type} (JSON:API reserves id generation to the server), and any write that declares an @AccessControl requirement — a write the plugin does not guard has nothing to refuse
404	operations whose path carries an {id} — a collection read and a create have nothing that can be missing
409	POST /{type} and PATCH /{type}/{id}, whose body repeats a type or id the collection or path already fixed
415	operations carrying a request body

Error responses carry a ready example per status code, embedded as JSON so that spec linters and mock servers read them as documents rather than as strings.

Shared Components

Responses and parameters that every operation repeats verbatim are published once under components and referenced from there:

"components": {
  "responses": {
    "TooManyRequests": { "description": "Too many requests. …", "content": { … }, "headers": { … } }
  }
},
"paths": {
  "/jsonapi/users": {
    "get": { "responses": { "429": { "$ref": "#/components/responses/TooManyRequests" } } }
  }
}

Nothing the document says changes — a $ref and the object it points at are the same thing to any reader. On the sample app it halves the file.

A response or parameter is shared only when it appears more than once and looks the same everywhere; one that varies is left inline at every occurrence, which is why include stays put — it names each resource’s own relationships. Names come from what the status code means (TooManyRequests, NoContent) or from the parameter with the brackets OpenAPI forbids in a component key removed (fields[users] → FieldsUsers).

Sharing runs after any customizer the application registered, so a response tuned by hand is shared in its final shape.

What Other Plugins Contribute

Two customizers ship with this plugin and document what a neighbouring plugin makes reachable. Each applies only when its plugin is registered and enabled, so a disabled plugin contributes no documentation just as it contributes no behaviour. Spring Boot and Quarkus need no wiring for either.

Sparse Fieldsets adds one fields[TYPE] parameter per type an operation’s response may carry.

Access Control turns what it enforces into what the document says:

Declared	Published as
@AccessControl(scopes = …)	the operation’s security, one entry per alternative — (A or B) and (C or D) becomes four
@AccessControl(authenticated = ANONYMOUS)	security: [], OpenAPI’s way of saying an operation needs no authentication
any requirement, on a write	403 — reads never carry one, since a denied read answers with an empty document and 200
a requirement’s description	appended to the operation’s, including entitlements and policies, which OpenAPI cannot state

Access control supplies the scopes; the OAS configuration supplies the flows they hang off. A requirement declared there wins over @OasOperationInfo(securityConfig = …). Each scope is published only on the flows whose own scopes declare it — OpenAPI reads an operation’s scopes against the scheme naming them, so a flow that cannot grant one is left out rather than made to reference it. A scope no flow declares at all fails generation.

Diagnostics

jsonapi4j.oas.diagnostics decides what a document the plugin cannot vouch for costs you, in increasing order of strictness:

Mode	Document is built	A loose end
DISABLED	on first request	ignored — the checks that exist only to report are skipped, not just silenced
WARN (default)	on first request	logged; the document is published anyway
FAIL_ON_REQUEST	on first request	the endpoint answers 500 with a JSON:API error document
FAIL_ON_STARTUP	during startup	the application does not start

FAIL_ON_STARTUP is the only mode that builds the document eagerly, and that is the point of it: every other mode discovers a broken document on whichever request happens to ask for it first, which in a deployed application means discovering it in production. It costs the generation work at every boot — a few hundred milliseconds on a small API — so an application that cannot afford that but still must not publish a document it cannot vouch for wants FAIL_ON_REQUEST instead.

This setting governs reports only. A document that would say something untrue is rejected whatever the mode — two schemas claiming one name would publish one of them under the other’s shape, and no setting should let that reach a client. FAIL_ON_STARTUP is therefore also the only mode under which such a rejection cannot first surface on a live endpoint.

Customizing the Generated Document

Anything the generator produces can be tuned by registering an OasCustomizer. Customizers run after the built-in ones, in the order registered, so each one sees the finished document:

public class RateLimitHeadersCustomizer implements OasCustomizer {

    @Override
    public void customise(OpenAPI openApi) {
        openApi.getPaths().values().stream()
                .flatMap(pathItem -> pathItem.readOperations().stream())
                .map(operation -> operation.getResponses().get("429"))
                .filter(Objects::nonNull)
                .forEach(response -> response.addHeaderObject("X-RateLimit-Remaining", new Header()
                        .required(true)
                        .description("Number of tokens currently remaining.")
                        .schema(new IntegerSchema())
                        .example(5)));
    }

}

Register it as a bean and the plugin picks it up — @Bean in Spring Boot, @Produces in Quarkus. With the plain Servlet API, pass them to the plugin directly:

new JsonApiOasPlugin(oasProperties, List.of(new RateLimitHeadersCustomizer()));

This is the extension point for anything the framework cannot derive: response headers your gateway adds, status codes only your domain produces, descriptions you want worded differently. See the sample apps for a working example.

Available Properties

Property name	Default value	Description
jsonapi4j.oas.enabled	true	Enables/disables OAS plugin and OAS endpoint exposure.
jsonapi4j.oas.diagnostics	WARN	What happens when the generated document has a loose end — a $ref resolving to nothing, or a requirement it could not state. DISABLED reports nothing and skips the checks that exist only to report; WARN logs and publishes anyway; FAIL_ON_REQUEST refuses to serve it; FAIL_ON_STARTUP builds the document during startup and refuses to start. See Diagnostics.
jsonapi4j.oas.oasRootPath	/jsonapi/oas	Root path for generated OpenAPI spec endpoint. Honoured identically by all three integrations; it must not be the same path as jsonapi4j.rootPath, which is checked at startup.
jsonapi4j.oas.info.title	JsonApi4j API Sample Title	OpenAPI info.title.
jsonapi4j.oas.info.description	not set	OpenAPI info.description.
jsonapi4j.oas.info.version	1.0.0	OpenAPI info.version.
jsonapi4j.oas.info.termsOfService	not set	OpenAPI info.termsOfService URL.
jsonapi4j.oas.info.contact.name	not set	OpenAPI info.contact.name.
jsonapi4j.oas.info.contact.url	not set	OpenAPI info.contact.url.
jsonapi4j.oas.info.contact.email	not set	OpenAPI info.contact.email.
jsonapi4j.oas.info.license.name	not set	OpenAPI info.license.name.
jsonapi4j.oas.info.license.url	not set	OpenAPI info.license.url.
jsonapi4j.oas.info.license.identifier	not set	OpenAPI info.license.identifier (SPDX).
jsonapi4j.oas.externalDocumentation.url	not set	OpenAPI external docs URL.
jsonapi4j.oas.externalDocumentation.description	not set	OpenAPI external docs description.
jsonapi4j.oas.oauth2.clientCredentials.name	not set	OAuth2 client credentials scheme name. Also the name operations reference in their security requirements — leave it unset and no operation requires this flow.
jsonapi4j.oas.oauth2.clientCredentials.description	not set	OAuth2 client credentials description.
jsonapi4j.oas.oauth2.clientCredentials.tokenUrl	not set	OAuth2 client credentials token URL.
jsonapi4j.oas.oauth2.clientCredentials.scopes[*].name	not set	OAuth2 scope name. Only scopes listed here can appear in this flow’s security requirements.
jsonapi4j.oas.oauth2.clientCredentials.scopes[*].description	not set	OAuth2 scope description.
jsonapi4j.oas.oauth2.authorizationCodeWithPkce.name	not set	OAuth2 authorization code + PKCE scheme name. Also the name operations reference in their security requirements — leave it unset and no operation requires this flow.
jsonapi4j.oas.oauth2.authorizationCodeWithPkce.description	not set	OAuth2 authorization code + PKCE description.
jsonapi4j.oas.oauth2.authorizationCodeWithPkce.tokenUrl	not set	OAuth2 authorization code + PKCE token URL.
jsonapi4j.oas.oauth2.authorizationCodeWithPkce.authorizationUrl	not set	OAuth2 authorization URL (PKCE flow).
jsonapi4j.oas.oauth2.authorizationCodeWithPkce.scopes[*].name	not set	OAuth2 scope name. Only scopes listed here can appear in this flow’s security requirements.
jsonapi4j.oas.oauth2.authorizationCodeWithPkce.scopes[*].description	not set	OAuth2 scope description.
jsonapi4j.oas.servers[*].name	not set	OpenAPI server display name.
jsonapi4j.oas.servers[*].url	not set	OpenAPI server URL.
jsonapi4j.oas.servers[*].enabled	false	Include server in generated spec or not.
